EVE 22AH PREMIUM BUS BAR SETS, Bus bars are cnc machined from 6061 aluminum, standard links are 1/2" thick, long folded and back to back links are a massive 1"x1-1/2" for proper power distribution, 1/2" thick end bars utilizing dual rows of lug bolts. All configurations include chipboard cell isolator spacers and the folded and back to back configurations include 1/4" thick acrylic spacers to shield the links and end bars from one each other. Includes m6 cell nuts, lug bolts and balancer screws. ALL DIMENSIONS FOR ALL SIZES AND CONFIGURATIONS LISTED BELOW, BUILD THE INSIDE DIMENSIONS OF YOU BATTERY BOX TO THESE.

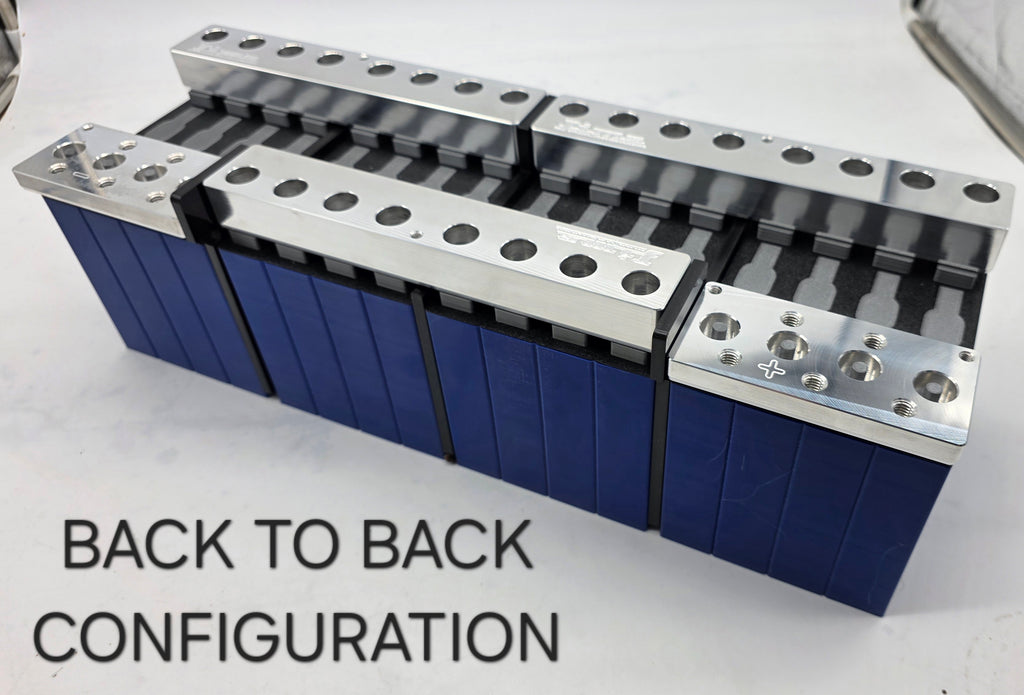

EVE BACK TO BACK DIMENSIONS
4B 88AH 12-17/32" X 5-7/8"
5B 110AH 15-17/32" X 5-7/8"
6B 132AH 18-17/32" X 5-7/8"
8B 176AH 24-17/32" X 5-7/8"
10B 220AH 30-17/32" X 5-7/8"
12B 264AH 36-17/32" X 5-7/8"
15B 330AH 45-17/32" X 5-7/8"

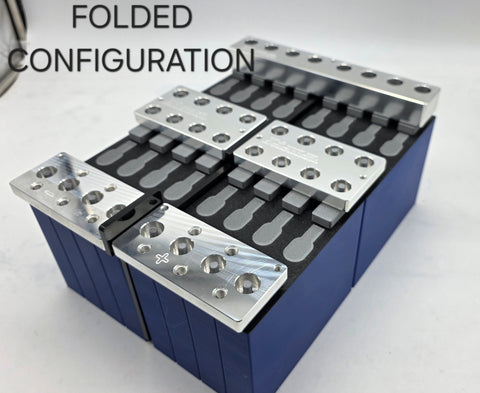

EVE FOLDED DIMENSIONS
4B 88AH 6-5/32" X 11-49/64"
5B 110AH 7-21/32" X 11-49/64"
6B 132AH 9-5/32" X 11-49/64"
8B 176AH 12-5/32" X 11-49/64"
10B 220AH 15-5/32" X 11-49/64"
12B 264AH 18-5/32" X 11-49/64"
15B 330AH 22-21/32" X 11-49/64"

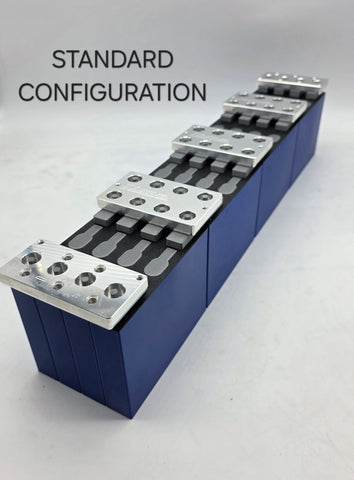

EVE STANDARD DIMENSIONS
4B 88AH 2-15/16" X 23-37/64"
5B 110AH 3-45/64" X 23-37/64"
6B 132AH 4-7/16" X 23-37/64"
8B 176AH 5-15/16" X 23-37/64"
10B 220AH 7-7/16" X 23-37/64"
12B 264AH 8-15/16" X 23-37/64"
15B 330AH 11-13/64" X 23-37/64"
MADE IN THE U.S.A.
